59. GOES ABI RGB Recipes

Brian Blaylock
September 26, 2019

For details on the RGB recipies below see the RAMMB CIRA website for GOES-R, including:

• TrueColor

• FireTemperature

• AirMass

• DayCloudPhase

• DayConvection

• DayLandCloudFire

• WaterVapor

• DaySnowFog

• etc.

These recipies are provided by the rgb custom accessor. This accessor is avaialble when you import goes2go.

59.1. Simple RGB Figure

At the most simple level, here is how to produce an RGB from the GOES ABI data.

from goes2go.data import goes_nearesttime
import matplotlib.pyplot as plt
from datetime import datetime
from pathlib import Path
import xarray

/Users/phil/mini310/envs/a301/lib/python3.13/site-packages/goes2go/data.py:673: FutureWarning: 'H' is deprecated and will be removed in a future version. Please use 'h' instead of 'H'.
  within=pd.to_timedelta(config["nearesttime"].get("within", "1h")),
/Users/phil/mini310/envs/a301/lib/python3.13/site-packages/goes2go/NEW.py:185: FutureWarning: 'H' is deprecated and will be removed in a future version. Please use 'h' instead of 'H'.
  within=pd.to_timedelta(config["nearesttime"].get("within", "1h")),

# Get an ABI Dataset
save_dir = Path.home() / "repos/a301/satdata/goes"
writeit = False
if writeit:
    g = goes_nearesttime(
        datetime(2020, 6, 25, 18), satellite="goes16",product="ABI-L2-MCMIP", domain='C',
          return_as="xarray", save_dir = save_dir, download = True, overwrite = False
    )
    the_path = g.path[0]
else:
    the_path = ("noaa-goes16/ABI-L2-MCMIPC/2020/177/18/"
                "OR_ABI-L2-MCMIPC-M6_G16_s20201771801172_e20201771803551_c20201771804104.nc")
    full_path = save_dir / the_path
    g = xarray.open_dataset(full_path,mode = 'r',mask_and_scale = True)
# Create RGB and plot

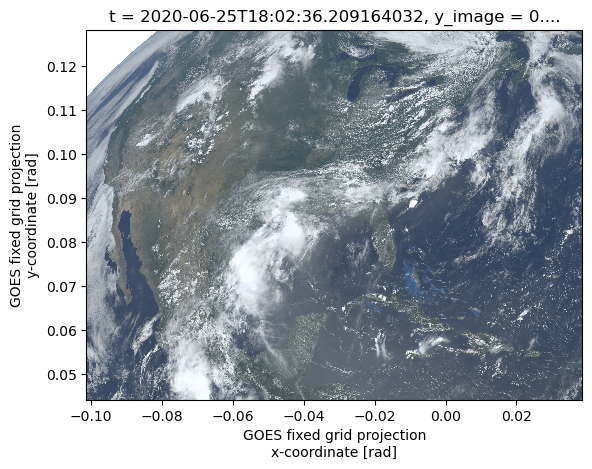

image = g.rgb.TrueColor()
image.plot.imshow();

59.2. Cartopy RGB Figure

The RGB can easily be added to a Cartopy axis

g.rgb.imshow_kwargs

{'extent': [np.float64(-3626269.332309611),
  np.float64(1381769.9431296065),
  np.float64(1584175.830644913),
  np.float64(4588197.756226748)],
 'transform': None,
 'origin': 'upper',
 'interpolation': 'none'}

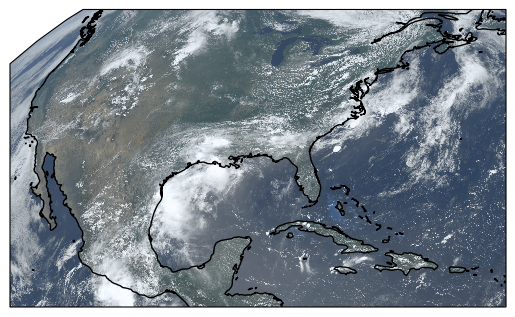

ax = plt.subplot(projection=g.rgb.crs)
ax.imshow(g.rgb.TrueColor(), **g.rgb.imshow_kwargs)
ax.coastlines()
ax.get_extent()

(-3626269.332309611, 1381769.9431296065, 1584175.830644913, 4588197.756226748)

59.2.1. keywords for cartopy plotting

g.rgb.imshow_kwargs

{'extent': [np.float64(-3626269.332309611),
  np.float64(1381769.9431296065),
  np.float64(1584175.830644913),
  np.float64(4588197.756226748)],
 'transform': None,
 'origin': 'upper',
 'interpolation': 'none'}

59.3. All available RGB recipes

from goes2go.data import goes_nearesttime
import cartopy.crs as ccrs
import matplotlib.pyplot as plt

writeit = False
if writeit:
    G16 = goes_nearesttime('2024-06-25 18',satellite=16,save_dir=save_dir)
    print(G16.path[0])
else:
    the_path = ("noaa-goes16/ABI-L2-MCMIPC/2024/177/18"
                "/OR_ABI-L2-MCMIPC-M6_G16_s20241771801172_e20241771803557_c20241771804062.nc")
    full_path = save_dir / the_path
    G16 = xarray.open_dataset(full_path,mode = 'r',mask_and_scale = True)
if writeit:
    G18 = goes_nearesttime('2024-06-25 18',satellite=18,save_dir=save_dir)
    print(G18.path[0])
else:
    the_path = ("noaa-goes18/ABI-L2-MCMIPC/2024/177/18/OR_ABI-L2-MCMIPC-M6_G18_s20241771801172_"
                "e20241771803545_c20241771804067.nc")
    full_path = save_dir / the_path
    G18 = xarray.open_dataset(full_path,mode = 'r',mask_and_scale = True)

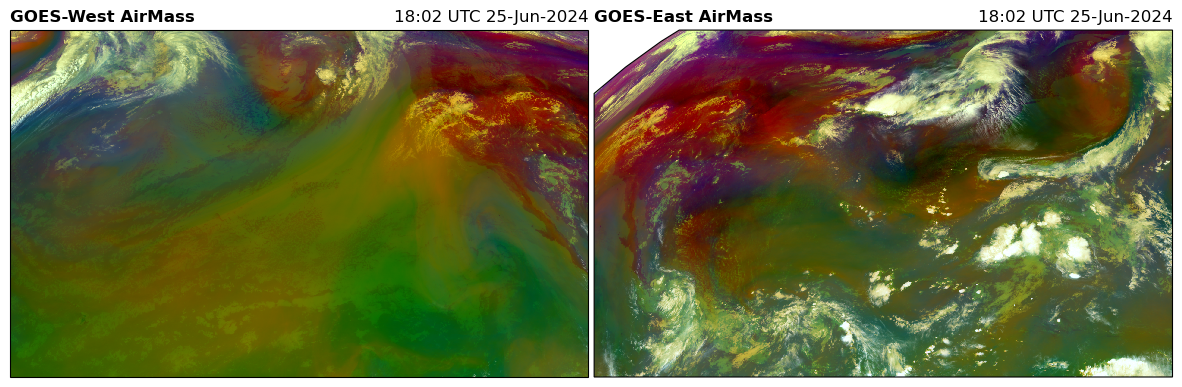

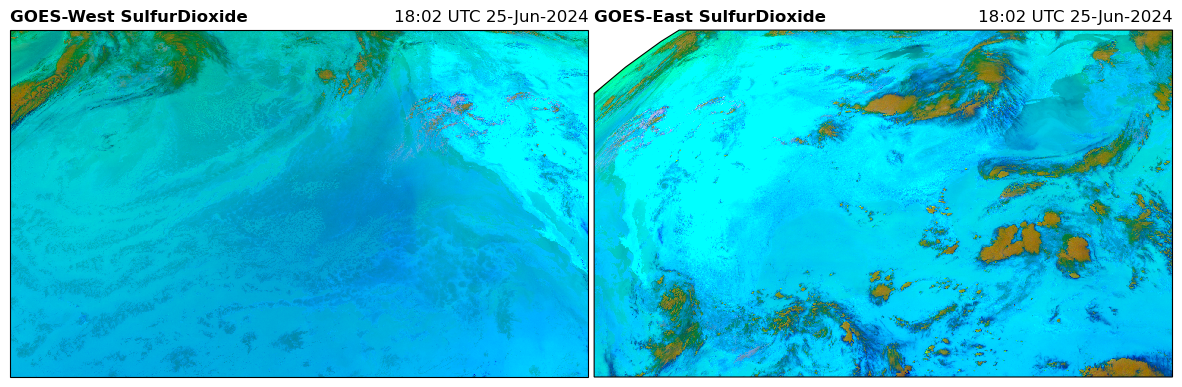

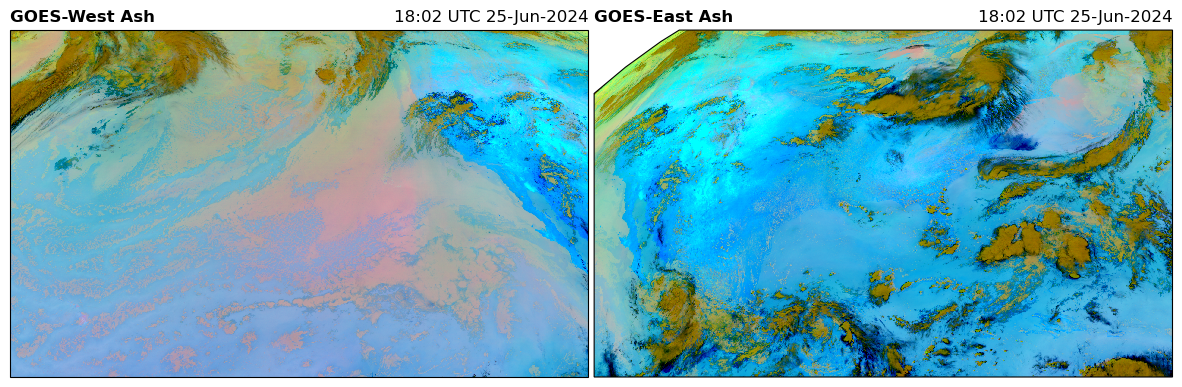

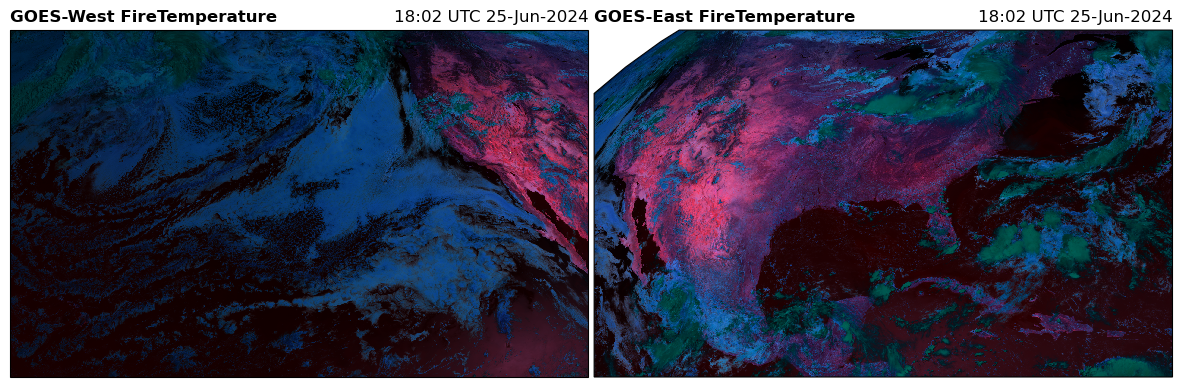

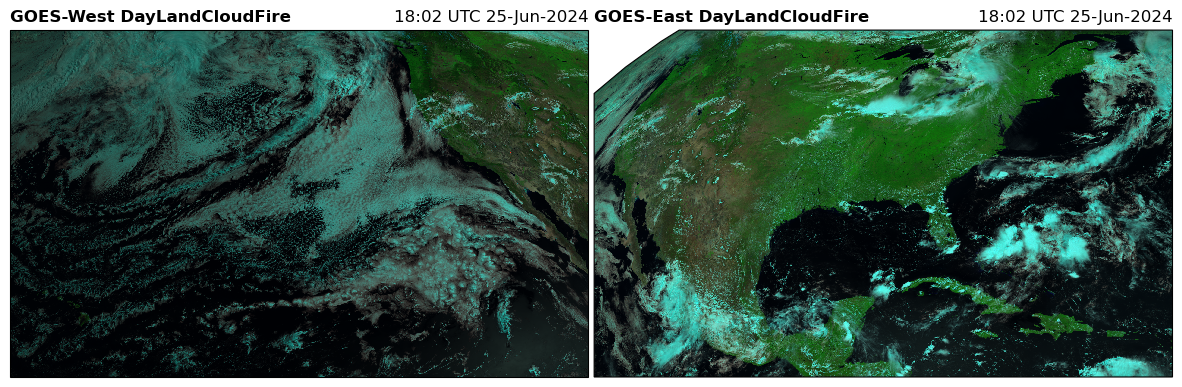

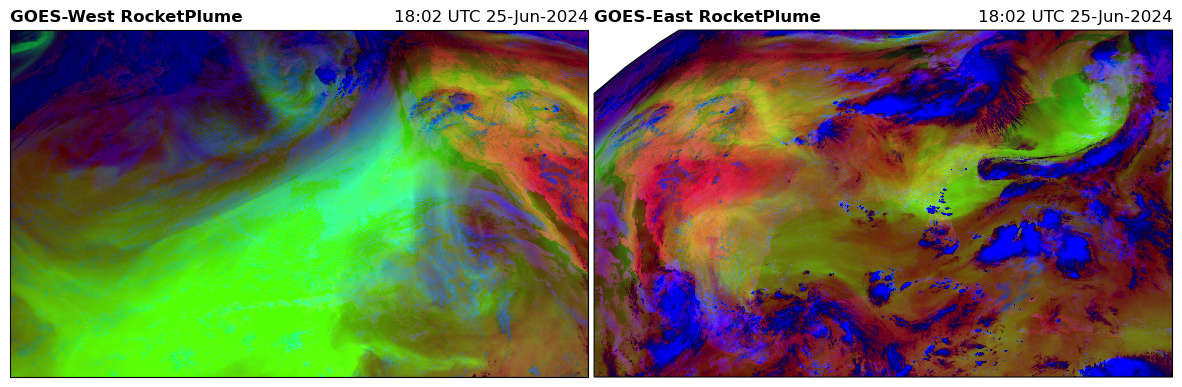

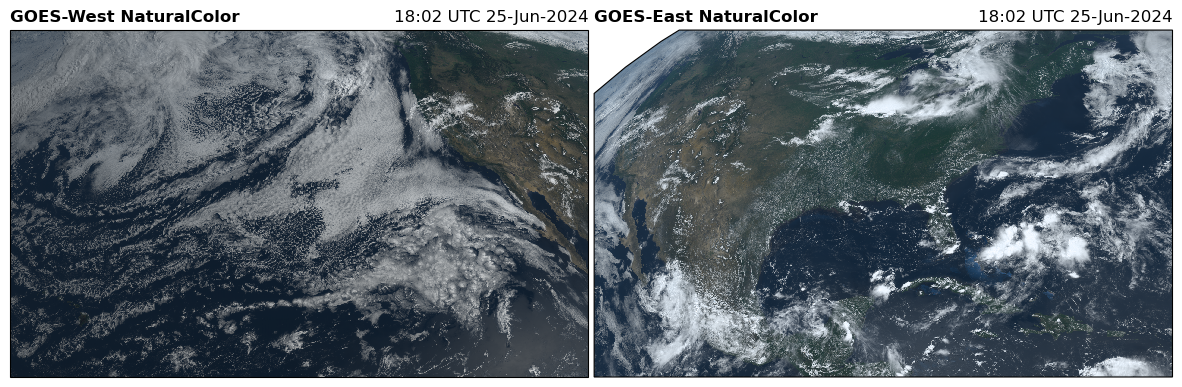

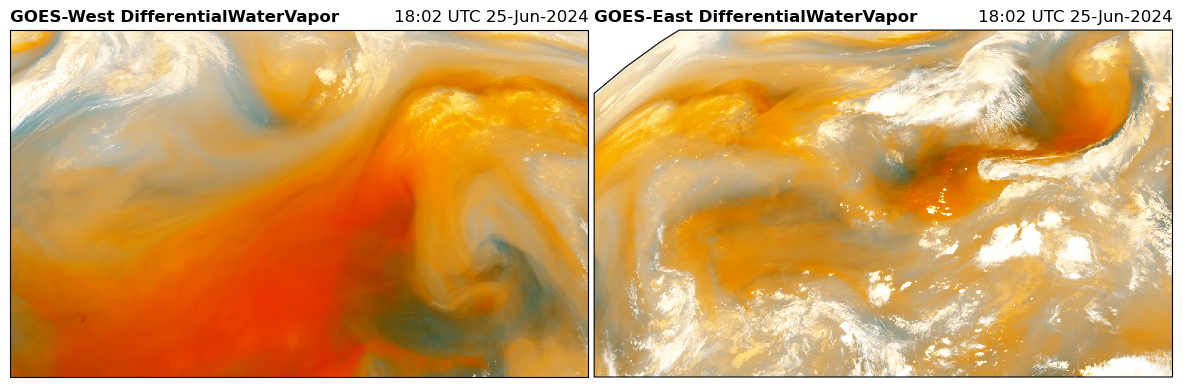

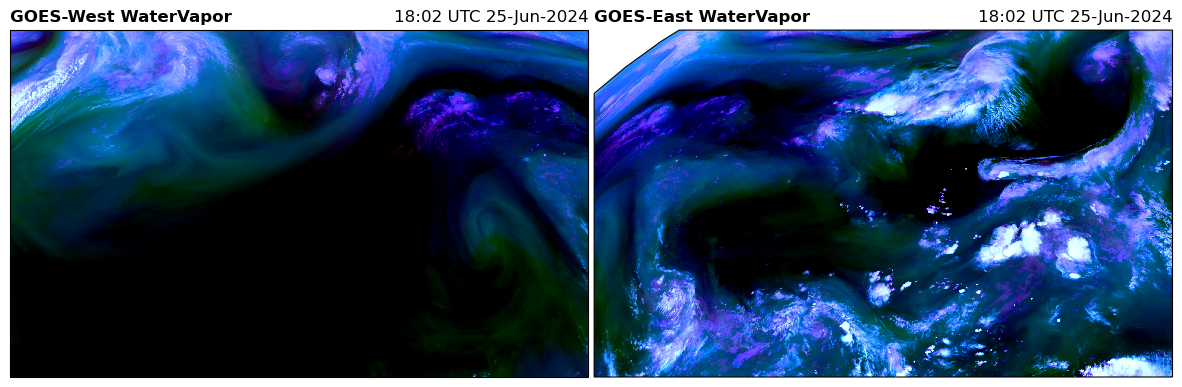

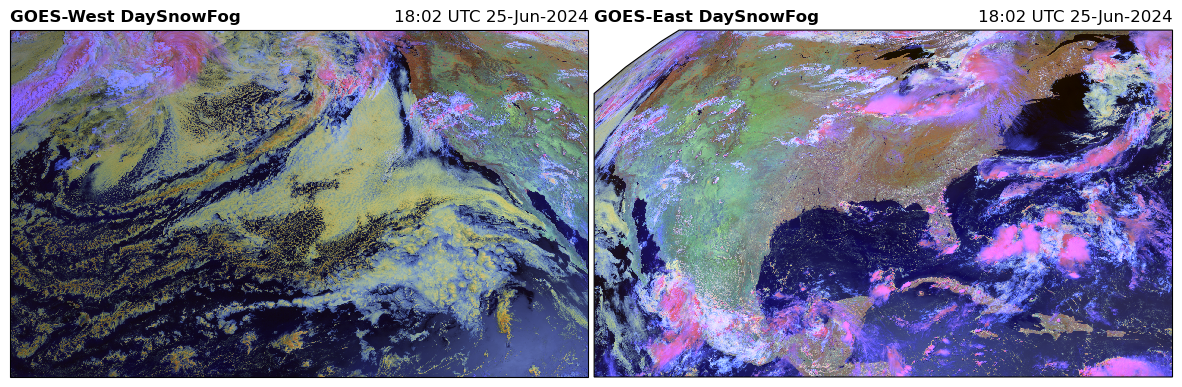

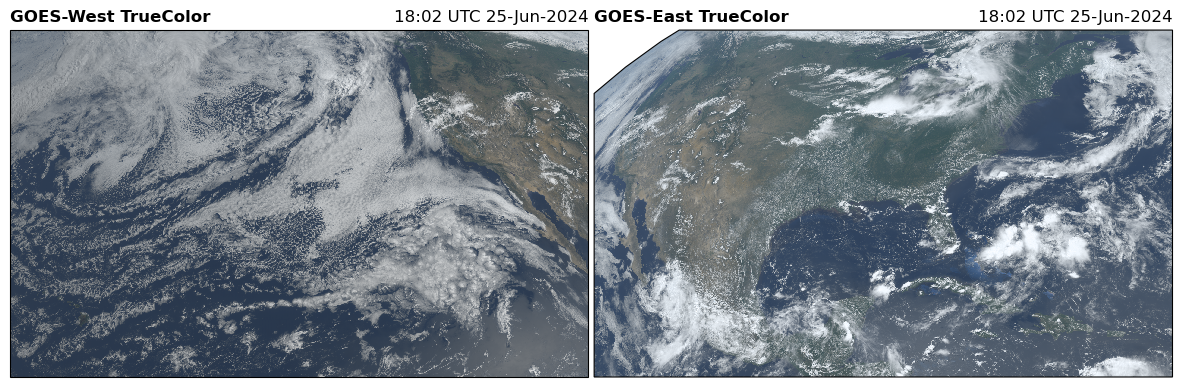

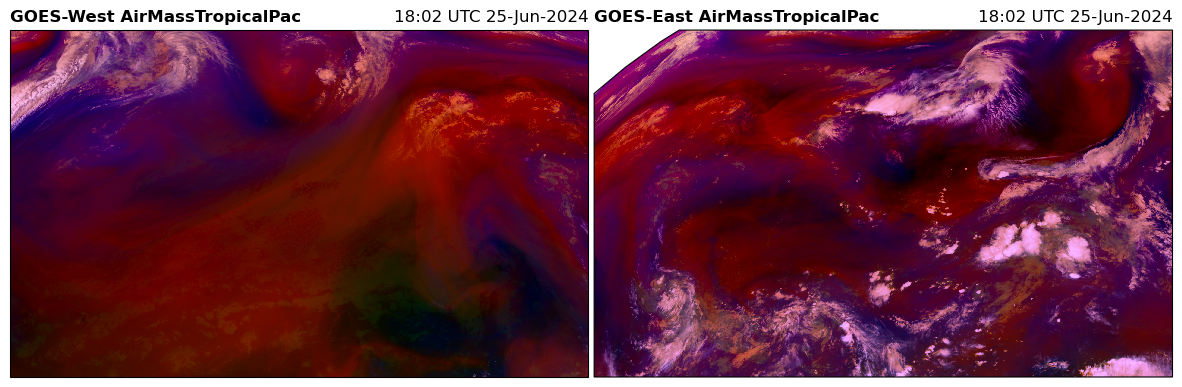

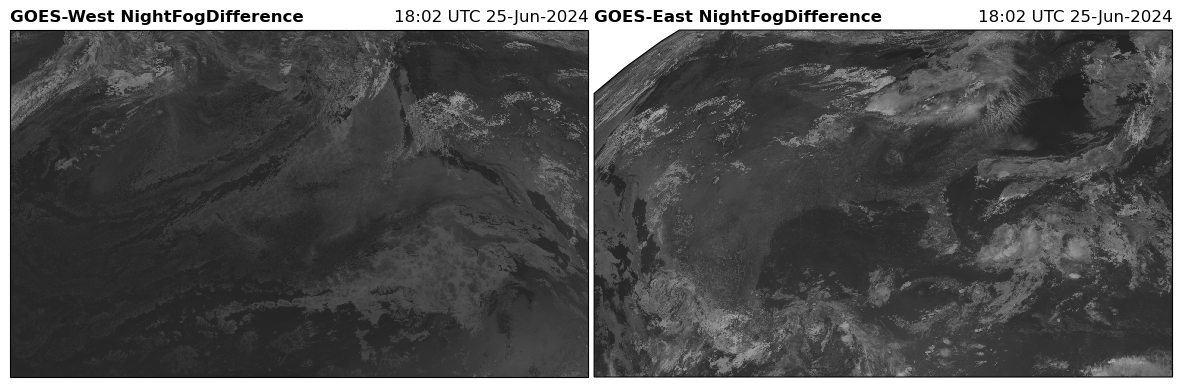

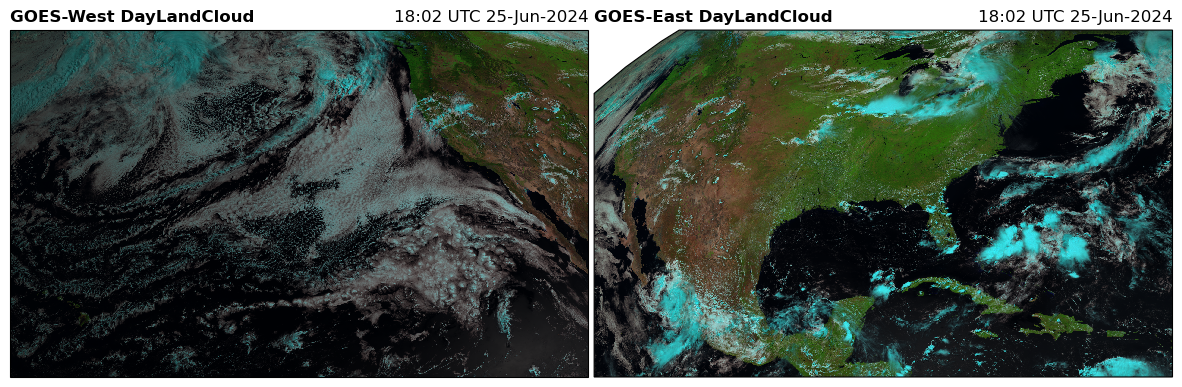

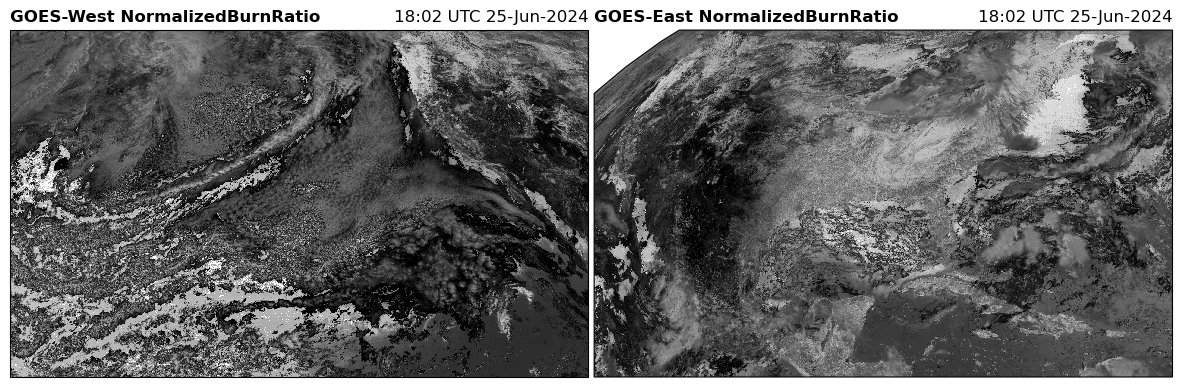

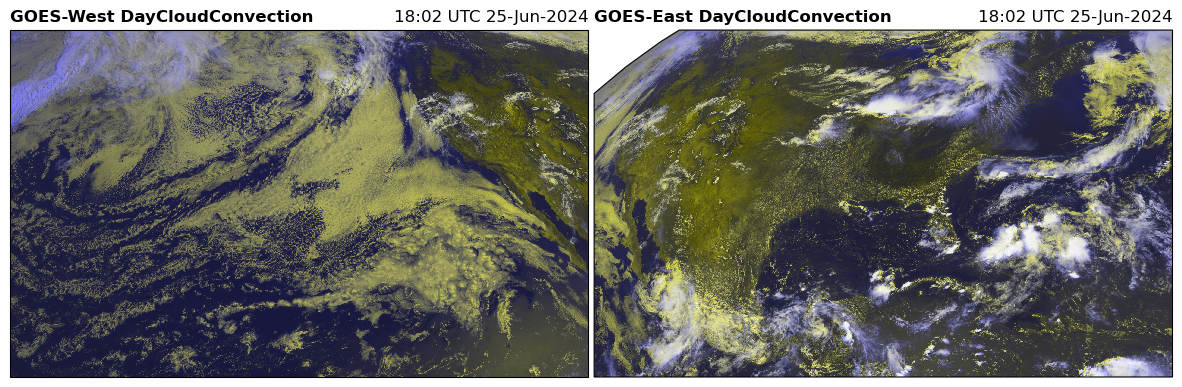

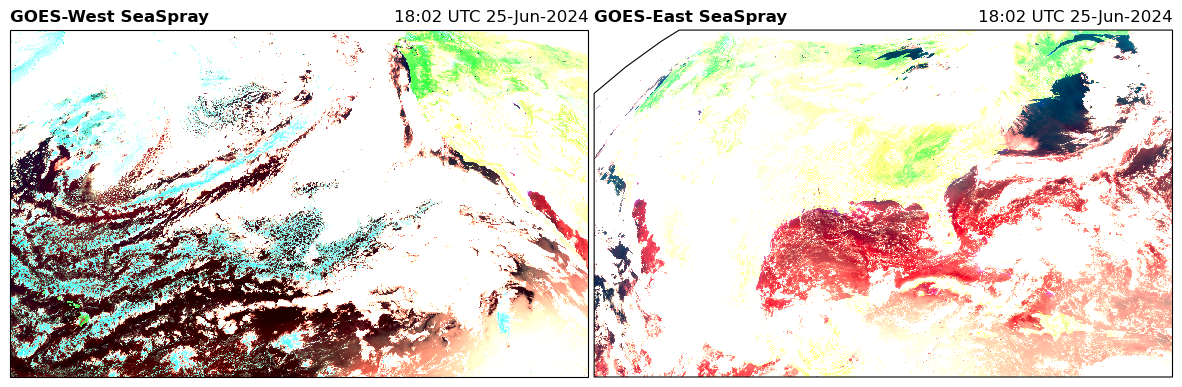

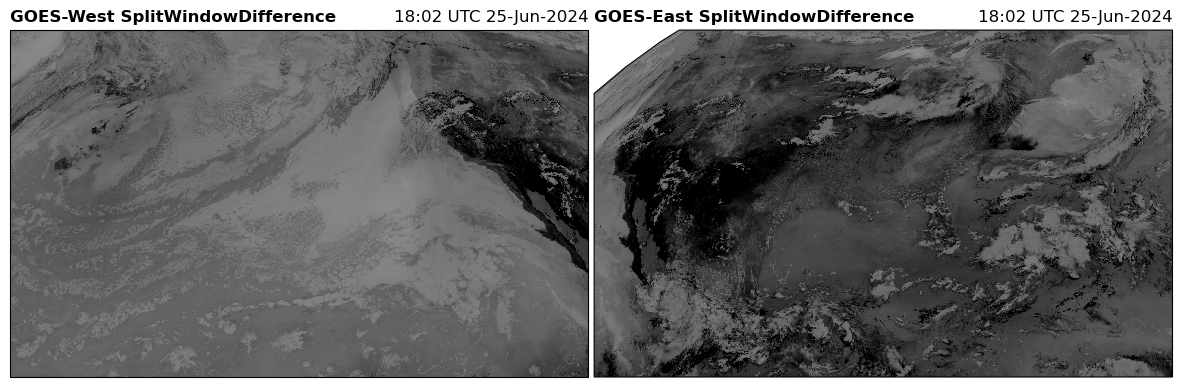

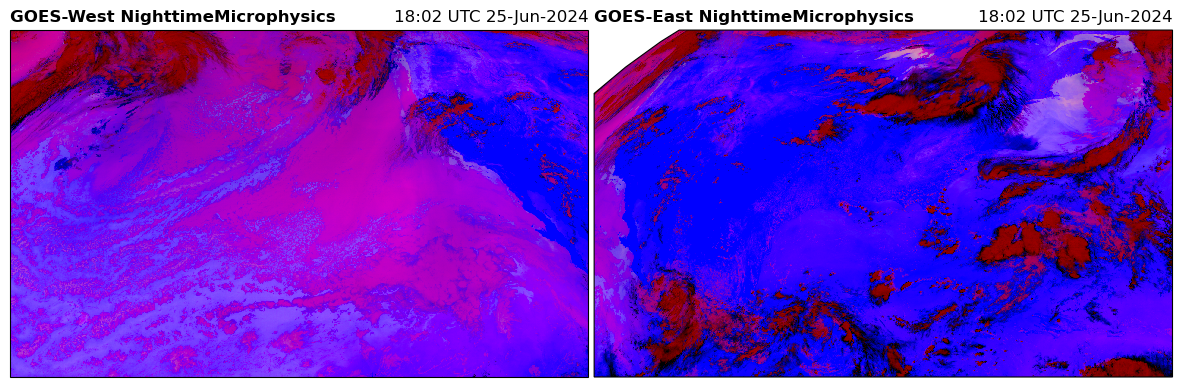

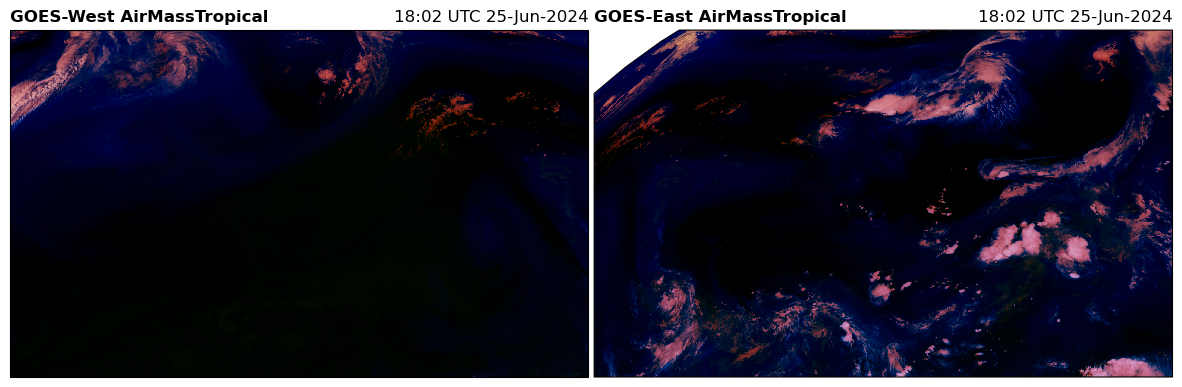

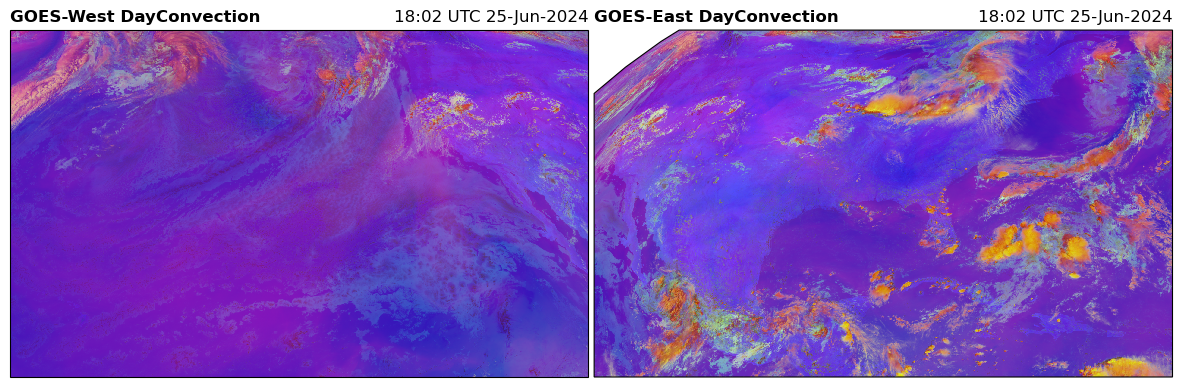

rgb_products = [i for i in dir(G16.rgb) if i[0].isupper()]

for product in rgb_products:

    fig = plt.figure(figsize=(15, 12))
    ax18 = fig.add_subplot(1, 2, 1, projection=G18.rgb.crs)
    ax16 = fig.add_subplot(1, 2, 2, projection=G16.rgb.crs)

    for ax, G in zip([ax18, ax16], [G18, G16]):
        RGB = getattr(G.rgb, product)()

        #common_features('50m', STATES=True, ax=ax)
        ax.imshow(RGB, **G.rgb.imshow_kwargs)
        ax.set_title(f"{G.orbital_slot} {product}", loc='left', fontweight='bold')
        ax.set_title(f"{G.t.dt.strftime('%H:%M UTC %d-%b-%Y').item()}", loc="right")
    plt.subplots_adjust(wspace=0.01)
    #plt.savefig(f'../docs/_static/{product}', bbox_inches='tight')

/Users/phil/mini310/envs/a301/lib/python3.13/site-packages/goes2go/accessors.py:1251: UserWarning: THE `NormalizedBurnRatio` FUNCTION IS NOT FULLY DEVELOPED. NEED MORE INFO.
  warnings.warn(
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers). Got range [-0.757256..1.0].

/Users/phil/mini310/envs/a301/lib/python3.13/site-packages/goes2go/accessors.py:1251: UserWarning: THE `NormalizedBurnRatio` FUNCTION IS NOT FULLY DEVELOPED. NEED MORE INFO.
  warnings.warn(
Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers). Got range [-0.49068323..1.0].

/var/folders/h3/5svt7fds58v0x7kkc54kl3640000gn/T/ipykernel_60055/210842163.py:5: RuntimeWarning: More than 20 figures have been opened. Figures created through the pyplot interface (`matplotlib.pyplot.figure`) are retained until explicitly closed and may consume too much memory. (To control this warning, see the rcParam `figure.max_open_warning`). Consider using `matplotlib.pyplot.close()`.
  fig = plt.figure(figsize=(15, 12))
