61. Reading earthcare level1b data

This notebook does a quick inspection of one of the earthcare cases, with plots of the radar reflectivity and doppler velocity. The earthcare data is stored in hdf5 format, which is also the underlying data format for netcdf. Unlike netcdf, the files don’t supply dimensions or coordinates, so we have to figure out those ourselves.

61.1. Installation

• Download a case folder from the satdata/earthcare folder on our gdrive folder

• fetch and rebase from upstream/main to get this notebook in week11

from pathlib import Path
import xarray as xr
import numpy as np
import pyproj
from matplotlib import pyplot as plt
import datetime
import pytz
import pyproj

61.2. Find the case files

Organize them in a dictionary keyed by the case name, which is at the start of the relative file path. pathlib has a function that finds the relative path, and also can break the folder path into its various parts

data_dir = Path().home() / 'repos/a301/satdata/earthcare'
radar_filepaths = list(data_dir.glob("**/*.h5"))
filepaths=dict()
for filepath in radar_filepaths:
    relpath = filepath.relative_to(data_dir)
    casename = relpath.parts[0]
    filepaths[casename]=filepath
relpath

PosixPath('case4/ECA_JXCA_CPR_NOM_1B_20241213T224328Z_20250213T185124Z_03096D.h5')

filepaths

{'case13': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case13/ECA_JXCA_CPR_NOM_1B_20250213T183051Z_20250213T214347Z_04058D.h5'),
 'case25': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case25/ECA_JXCA_CPR_NOM_1B_20240905T201951Z_20250207T032255Z_01554D.h5'),
 'case22': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case22/ECA_JXCA_CPR_NOM_1B_20241103T201606Z_20250210T071959Z_02472D.h5'),
 'case12': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case12/ECA_JXCA_CPR_NOM_1B_20250130T225341Z_20250131T003943Z_03843D.h5'),
 'case15': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case15/ECA_JXCA_CPR_NOM_1B_20250225T185602Z_20250225T220905Z_04245D.h5'),
 'case6': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case6/ECA_JXCA_CPR_NOM_1B_20241225T200406Z_20250223T144933Z_03281D.h5'),
 'case30': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case30/ECA_JXCA_CPR_NOM_1B_20240831T200203Z_20250205T175426Z_01476D.h5'),
 'case9': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case9/ECA_JXCA_CPR_NOM_1B_20250117T201449Z_20250117T215611Z_03639D.h5'),
 'case7': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case7/ECA_JXCA_CPR_NOM_1B_20241227T195312Z_20250223T164600Z_03312D.h5'),
 'case31': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case31/ECA_JXCA_CPR_NOM_1B_20240727T190018Z_20250225T155058Z_00931D.h5'),
 'case17': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case17/ECA_JXCA_CPR_NOM_1B_20250216T190020Z_20250216T222300Z_04105D.h5'),
 'case28': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case28/ECA_JXCA_CPR_NOM_1B_20240903T203112Z_20250207T021445Z_01523D.h5'),
 'case21': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case21/ECA_JXCA_CPR_NOM_1B_20241225T200406Z_20250223T144933Z_03281D.h5'),
 'case26': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case26/ECA_JXCA_CPR_NOM_1B_20240911T194535Z_20250207T064304Z_01647D.h5'),
 'case19': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case19/ECA_JXCA_CPR_NOM_1B_20250118T192256Z_20250118T223604Z_03654D.h5'),
 'case27': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case27/ECA_JXCA_CPR_NOM_1B_20240908T191638Z_20250207T045809Z_01600D.h5'),
 'case20': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case20/ECA_JXCA_CPR_NOM_1B_20241227T195312Z_20250223T164600Z_03312D.h5'),
 'case29': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case29/ECA_JXCA_CPR_NOM_1B_20240901T191008Z_20250207T012629Z_01491D.h5'),
 'case11': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case11/ECA_JXCA_CPR_NOM_1B_20250119T183101Z_20250119T214712Z_03669D.h5'),
 'case4': PosixPath('/Users/phil/repos/a301/satdata/earthcare/case4/ECA_JXCA_CPR_NOM_1B_20241213T224328Z_20250213T185124Z_03096D.h5')}

def sort_keys(the_case):
    number = the_case[4:]
    return int(number)

sorted_keys = list(filepaths.keys())
sorted_keys.sort(key=sort_keys)
casenum = 'case4'
#sorted_keys

61.3. Read the data and metadata

These are netcdf files, so no dimensions or coordinates, we’ll need to create these. Start by naming the time and height dimensions

cpr_data = xr.open_dataset(filepaths[casenum], engine='h5netcdf', group='/ScienceData/Data',
                            decode_times=True,  phony_dims='access')
cpr_data = cpr_data.rename_dims({'phony_dim_0':'time','phony_dim_1': 'height'})

cpr_meta = xr.open_dataset(filepaths[casenum], engine='h5netcdf', group='/ScienceData/Geo',
                           decode_times=True, phony_dims='access')
cpr_meta = cpr_meta.rename_dims({'phony_dim_0':'time','phony_dim_1': 'height'})

cpr_meta

<xarray.Dataset> Size: 10MB
Dimensions:                 (time: 9946, height: 218, phony_dim_2: 1)
Dimensions without coordinates: time, height, phony_dim_2
Data variables: (12/25)
    binHeight               (time, height) float32 9MB ...
    latitude                (time) float64 80kB ...
    longitude               (time) float64 80kB ...
    navigationLandWaterFlg  (time) float32 40kB ...
    pitchAngle              (time) float32 40kB ...
    processingFrameNo       (time) float32 40kB ...
    ...                      ...
    surfaceElevation        (time) float32 40kB ...
    timeFlag                (time) float32 40kB ...
    xPosition               (time) float64 80kB ...
    yPosition               (time) float64 80kB ...
    yawAngle                (time) float32 40kB ...
    zPosition               (time) float64 80kB ...

xarray.Dataset

• Dimensions:
  • time: 9946
  • height: 218
  • phony_dim_2: 1
• Coordinates: (0)
• Data variables: (25)
  • binHeight
    (time, height)
    float32
    ...

    DimensionNames :

    nray,nbin

    long_name :

    bin height

    units :

    m

    valid_range :

    [2168228 values with dtype=float32]

  • latitude
    (time)
    float64
    ...

    DimensionNames :

    nray

    long_name :

    latitude

    units :

    degree_north

    valid_range :

    [-90. 90.]

    [9946 values with dtype=float64]

  • longitude
    (time)
    float64
    ...

    DimensionNames :

    nray

    long_name :

    longitude

    units :

    degree_east

    valid_range :

    [-180. 180.]

    [9946 values with dtype=float64]

  • navigationLandWaterFlg
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    navigation land water flag

    units :

    unitless

    valid_range :

    [0 1]

    [9946 values with dtype=float32]

  • pitchAngle
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    pitch angle

    units :

    degree

    valid_range :

    [-180. 180.]

    [9946 values with dtype=float32]

  • processingFrameNo
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    processing frame number

    units :

    unitless

    valid_range :

    [ 1 14]

    [9946 values with dtype=float32]

  • profileTime
    (time)
    datetime64[ns]
    ...

    DimensionNames :

    nray

    long_name :

    profile time

    valid_range :

    [9946 values with dtype=datetime64[ns]]

  • rangeBinMaxNumber
    (phony_dim_2)
    float32
    ...

    DimensionNames :

    1

    long_name :

    bin number

    units :

    unitless

    valid_range :

    [218 544]

    [1 values with dtype=float32]

  • rangeToFirstBin
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    range to first bin

    units :

    m

    valid_range :

    [9946 values with dtype=float32]

  • rangeToIntercept
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    range to intercept

    units :

    m

    valid_range :

    [9946 values with dtype=float32]

  • rayHeaderRangeBinSize
    (phony_dim_2)
    float32
    ...

    DimensionNames :

    1

    long_name :

    ray header range bin size

    units :

    m

    valid_range :

    [1 values with dtype=float32]

  • rayHeaderSpatAvg
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    ray header spatial average

    units :

    m

    valid_range :

    [9946 values with dtype=float32]

  • rayNumber
    (phony_dim_2)
    float32
    ...

    DimensionNames :

    1

    long_name :

    ray number

    units :

    unitless

    valid_range :

    [ 0 32767]

    [1 values with dtype=float32]

  • rollAngle
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    roll angle

    units :

    degree

    valid_range :

    [-180. 180.]

    [9946 values with dtype=float32]

  • satelliteVelocityX
    (time)
    float64
    ...

    DimensionNames :

    nray

    long_name :

    satellite velocity X

    units :

    m/s

    valid_range :

    [9946 values with dtype=float64]

  • satelliteVelocityY
    (time)
    float64
    ...

    DimensionNames :

    nray

    long_name :

    satellite velocity Y

    units :

    m/s

    valid_range :

    [9946 values with dtype=float64]

  • satelliteVelocityZ
    (time)
    float64
    ...

    DimensionNames :

    nray

    long_name :

    satellite velocity Z

    units :

    m/s

    valid_range :

    [9946 values with dtype=float64]

  • solarAzimuthAngle
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    solar azimuth angle

    units :

    degree

    valid_range :

    [ 0. 360.]

    [9946 values with dtype=float32]

  • solarElevationAngle
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    solar elevation angle

    units :

    degree

    valid_range :

    [ 0. 180.]

    [9946 values with dtype=float32]

  • surfaceElevation
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    surface elevation (WGS84)

    units :

    m

    valid_range :

    [9946 values with dtype=float32]

  • timeFlag
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    time flag

    units :

    unitless

    valid_range :

    [0 1]

    [9946 values with dtype=float32]

  • xPosition
    (time)
    float64
    ...

    DimensionNames :

    nray

    long_name :

    satellite position X

    units :

    m

    valid_range :

    [9946 values with dtype=float64]

  • yPosition
    (time)
    float64
    ...

    DimensionNames :

    nray

    long_name :

    satellite position Y

    units :

    m

    valid_range :

    [9946 values with dtype=float64]

  • yawAngle
    (time)
    float32
    ...

    DimensionNames :

    nray

    long_name :

    yaw angle

    units :

    degree

    valid_range :

    [-180. 180.]

    [9946 values with dtype=float32]

  • zPosition
    (time)
    float64
    ...

    DimensionNames :

    nray

    long_name :

    satellite position Z

    units :

    m

    valid_range :

    [9946 values with dtype=float64]

• Indexes: (0)
• Attributes: (0)

61.4. construct height, time, distance coords

61.4.1. get times

def find_times(filepath):
    """
    times are stored as seconds after Jan 1, 2000
    use the datetime.timedelta function to increment from
    that start time

    Also set the timezone as utc
    """
    cpr_meta = xr.open_dataset(filepath, engine='h5netcdf', group='/ScienceData/Geo',
                           decode_times=False, phony_dims='access')
    times = cpr_meta['profileTime'].data
    start_time = datetime.datetime(2000,1,1,0,0,0)
    the_times =[start_time + datetime.timedelta(seconds=item) for item in times]
    the_times = [item.replace(tzinfo = pytz.utc) for item in the_times]
    return the_times

the_times = find_times(filepaths[casenum])
print(len(the_times))
the_times[:4]

9946

[datetime.datetime(2024, 12, 13, 22, 43, 31, 511866, tzinfo=<UTC>),
 datetime.datetime(2024, 12, 13, 22, 43, 31, 580652, tzinfo=<UTC>),
 datetime.datetime(2024, 12, 13, 22, 43, 31, 649437, tzinfo=<UTC>),
 datetime.datetime(2024, 12, 13, 22, 43, 31, 718223, tzinfo=<UTC>)]

61.4.2. print the case times

for casename in sorted_keys:
    filepath = filepaths[casename]
    check_times = find_times(filepath)
    print(casename, check_times[0], check_times[-1])

case4 2024-12-13 22:43:31.511866+00:00 2024-12-13 22:55:21.904667+00:00
case6 2024-12-25 20:04:09.702314+00:00 2024-12-25 20:16:00.055151+00:00

case7 2024-12-27 19:53:15.007300+00:00 2024-12-27 20:05:05.358234+00:00

case9 2025-01-17 20:14:51.729728+00:00 2025-01-17 20:26:42.075556+00:00
case11 2025-01-19 18:31:04.489242+00:00 2025-01-19 18:42:54.702278+00:00
case12 2025-01-30 22:53:44.522380+00:00 2025-01-30 23:05:34.735525+00:00

case13 2025-02-13 18:30:54.491970+00:00 2025-02-13 18:42:44.837739+00:00

case15 2025-02-25 18:56:05.332980+00:00 2025-02-25 19:07:55.542302+00:00
case17 2025-02-16 19:00:23.101428+00:00 2025-02-16 19:12:13.312624+00:00
case19 2025-01-18 19:22:59.248577+00:00 2025-01-18 19:34:49.594296+00:00

case20 2024-12-27 19:53:15.007300+00:00 2024-12-27 20:05:05.358234+00:00

case21 2024-12-25 20:04:09.702314+00:00 2024-12-25 20:16:00.055151+00:00
case22 2024-11-03 20:16:08.522453+00:00 2024-11-03 20:27:58.909370+00:00
case25 2024-09-05 20:19:53.853945+00:00 2024-09-05 20:31:43.653490+00:00

case26 2024-09-11 19:45:38.173358+00:00 2024-09-11 19:57:27.924280+00:00

case27 2024-09-08 19:16:40.803839+00:00 2024-09-08 19:28:30.554429+00:00
case28 2024-09-03 20:31:15.664716+00:00 2024-09-03 20:43:05.463916+00:00
case29 2024-09-01 19:10:11.047918+00:00 2024-09-01 19:22:00.842677+00:00

case30 2024-08-31 20:02:05.833955+00:00 2024-08-31 20:13:55.765801+00:00

case31 2024-07-27 19:00:21.082480+00:00 2024-07-27 19:12:12.720094+00:00

61.4.3. get binheights

def get_binheights(cpr_meta):
    """
    the radar bin heights are stored for every radar pulse.  If the terrain is
    roughly level, these should be the same pulse to pulse, so just use the
    first one

    Some radar height bins are missing, so fill those in by finding the average
    distance between bins and using that as an increment

    Questions -- what does [...] accomplish here? Why all the float() calls?
    """
    the_bins = cpr_meta.binHeight[...]
    the_bins = the_bins[0,:].data
    diff_bins = np.diff(the_bins)
    del_y = float(np.nanmean(diff_bins))
    new_y = [float(the_bins[0])]
    for count,old_y in enumerate(the_bins[1:]):
        if np.isnan(old_y):
            new_y.append(float(new_y[count]) + float(del_y))
        else:
            new_y.append(float(old_y))
    return np.array(new_y)

heights = get_binheights(cpr_meta)

61.4.4. get the along-track distance

We want to turn time into distance, so use pyproj to find the great circle distance between each set of pulses, using their lon, lat coords

great_circle=pyproj.Geod(ellps='WGS84')
meters2km = 1.e-3
def calc_distance(lonvec,latvec):
    distance=[0]
    startlon,startlat = lonvec[0],latvec[0]
    for lon,lat in zip(lonvec[1:],latvec[1:]):
        azi12,azi21,step= great_circle.inv(startlon,startlat,lon,lat)
        distance.append(distance[-1] + step)
        startlon,startlat = lon, lat
    distance=np.array(distance)*meters2km
    return distance

lonvec = cpr_meta['longitude'].data
latvec = cpr_meta['latitude'].data
distance = calc_distance(lonvec, latvec)
distance[:4]

array([0.        , 0.50020804, 1.00041453, 1.50069449])

61.5. add time, height coords

coords = dict(time=("time", the_times),
              height=("height",heights),
              distance = ("time",distance))
cpr_meta = cpr_meta.assign_coords(coords=coords)
cpr_data = cpr_data.assign_coords(coords=coords)

cpr_meta.coords

Coordinates:
  * time      (time) object 80kB 2024-12-13T22:43:31.511866+00:00 ... 2024-12...
  * height    (height) float64 2kB 1.618e+04 1.608e+04 ... -5.401e+03 -5.501e+03
    distance  (time) float64 80kB 0.0 0.5002 1.0 ... 5.172e+03 5.173e+03

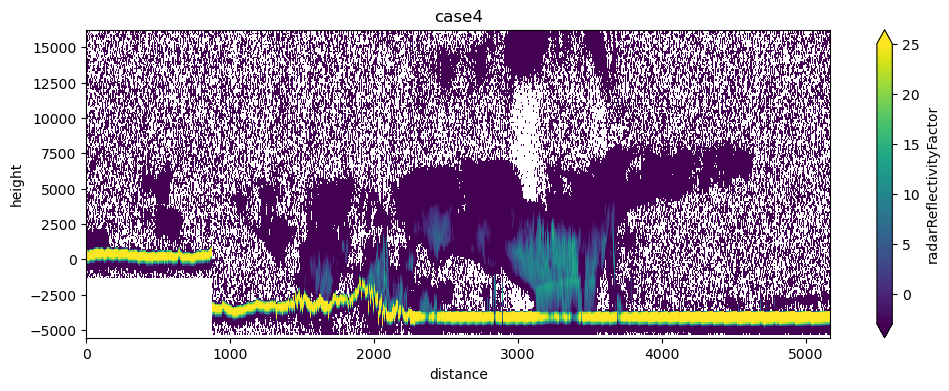

61.6. plot the radar reflectivity

radar = cpr_data['radarReflectivityFactor'].T
radar.shape

(218, 9946)

dbZ = 10*np.log10(radar)

/Users/phil/mini310/envs/a301/lib/python3.13/site-packages/xarray/computation/apply_ufunc.py:821: RuntimeWarning: divide by zero encountered in log10
  result_data = func(*input_data)
/Users/phil/mini310/envs/a301/lib/python3.13/site-packages/xarray/computation/apply_ufunc.py:821: RuntimeWarning: invalid value encountered in log10
  result_data = func(*input_data)

len(distance),dbZ.shape,len(heights)

(9946, (218, 9946), 218)

dbZ.coords

Coordinates:
  * time      (time) object 80kB 2024-12-13T22:43:31.511866+00:00 ... 2024-12...
  * height    (height) float64 2kB 1.618e+04 1.608e+04 ... -5.401e+03 -5.501e+03
    distance  (time) float64 80kB 0.0 0.5002 1.0 ... 5.172e+03 5.173e+03

fig, ax = plt.subplots(1, 1, figsize=(12, 4))
dbZ.plot.pcolormesh(x="distance",y="height",vmin=-3,vmax=25);
ax.set_title(casenum);

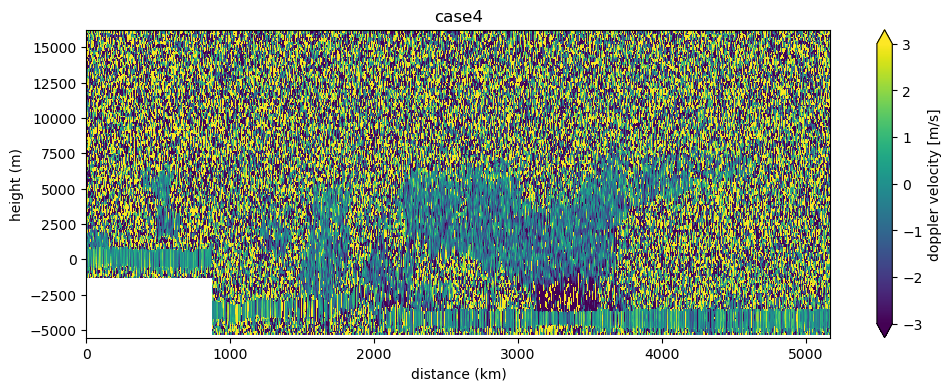

61.7. plot the doppler velocity

velocity = cpr_data['dopplerVelocity'].T

fig, ax = plt.subplots(1, 1, figsize=(12, 4))
velocity.plot.pcolormesh(ax=ax,x="distance",y="height",vmin=-3,vmax=3)
ax.set_xlabel("distance (km)")
ax.set_ylabel("height (m)")
ax.set_title(casenum);

velocity =velocity.set_xindex("distance")

61.8. Your assignment

Pick one of the available earthcare cases, and find the closest GOES 16 image to the central time of the earthcare segment. Plot the eathcare ground track on top of the clipped goes false color image
