Convert earthcare to xarray

62. Convert earthcare to xarray#

This notebook reads in an earthcare hdf5 file and converts it to an xarray dataset by adding dimensions, coordinates and variables. We store the height of the first ray, the time and the along-track distance as coordinates, and the longitude, latitude, reflectivity in dbZ and doppler velocity as variables.

The first 1000 km of the data have a height glitch, so in the second part of the notebook we show how to remove the bad data by cropping on the distance coordinate, rewrite the coordinates with the new height, distance coordinates, and write the dataset out to a netcdf file.

62.1. Installation#

Download a case folder from the satdata/earthcare folder on our gdrive folder
fetch and rebase from upstream/main to get this notebook in week11. You’ll want to modify this notebook to work with your case, so checkout and rebase on to your initials branch:
```
git checkout main
git fetch upstream
git rebase upstream/main
git checkout your_initials
git rebase main
git push
```
To save your work:
```
git commit -m 'commit message'
git push
```

from pathlib import Path
import xarray as xr
import numpy as np
import pyproj
from matplotlib import pyplot as plt
import datetime
import pytz
import pyproj

62.2. Find the case files#

Organize them in a dictionary keyed by the case name, which is at the start of the relative file path. pathlib has a function that finds the relative path, and also can break the folder path into its various parts

data_dir = Path().home() / 'repos/a301/satdata/earthcare'
radar_filepaths = list(data_dir.glob("**/*.h5"))
filepaths=dict()
for filepath in radar_filepaths:
    relpath = filepath.relative_to(data_dir)
    casename = relpath.parts[0]
    filepaths[casename]=filepath
relpath

PosixPath('case4/ECA_JXCA_CPR_NOM_1B_20241213T224328Z_20250213T185124Z_03096D.h5')

62.2.1. This functions sorts the cases by case number#

def sort_keys(the_case):
    #
    # the case number starts after 'case' at position 4
    #
    number = the_case[4:]
    #
    # return case number as an integer so it will sort
    # correctly
    #
    return int(number)

62.2.2. Pick case 4#

sorted_keys = list(filepaths.keys())
sorted_keys.sort(key=sort_keys)
casenum = 'case4'

62.3. Get coordinates#

The three functions below calculate vectors of height, time and distance that can be used as coordinates for axis labeling, and as indexes for selecting/cropping values.

def get_binheight(the_bins, index=0):
    """
    select one of the the radar bin heights and fill in missing data with
    estimated values.  By default we'll
    take index=0, i.e. the bin heights for the first pulse

    Parameters
    ----------

    """
    the_bins = the_bins[:,index].data
    diff_bins = np.diff(the_bins)
    del_y = float(np.nanmean(diff_bins))
    new_y = [float(the_bins[0])]
    for count,old_y in enumerate(the_bins[1:]):
        #
        # found a nan to be replaced
        #
        if np.isnan(old_y):
            new_y.append(float(new_y[count]) + float(del_y))
        else:
            new_y.append(float(old_y))
    return np.array(new_y)

def find_times(filepath):
    """
    times are stored as seconds after Jan 1, 2000 UTC
    use the datetime.timedelta function to increment from
    that start time


    """
    cpr_meta = xr.open_dataset(filepath, engine='h5netcdf', group='/ScienceData/Geo',
                           decode_times=False, phony_dims='access')
    times = cpr_meta['profileTime'].data
    start_time = datetime.datetime(2000,1,1,0,0,0)
    the_times =[start_time + datetime.timedelta(seconds=item) for item in times]
    #
    # netcdf doesn't understand timezones so document the UTC timezone in
    # the metadata
    #
    return the_times

great_circle=pyproj.Geod(ellps='WGS84')
meters2km = 1.e-3
def calc_distance(lonvec,latvec):
    """
    the pyproj.Geod object calculates the lat, lon between
    2 points on a great circle, and the inverse calculates
    the great circle distance between 2 lot/lon points
    """
    distance=[0]
    startlon,startlat = lonvec[0],latvec[0]
    for lon,lat in zip(lonvec[1:],latvec[1:]):
        azi12,azi21,step= great_circle.inv(startlon,startlat,lon,lat)
        distance.append(distance[-1] + step)
        startlon,startlat = lon, lat
    distance=np.array(distance)*meters2km
    return distance

def ec_to_xarray(ec_filepath,casenum=0):
    """
    open an earthcare h5 file and read the times, latitude, longitude, radar reflectivity
    and the dopple velocity. Save this as an xarray dataset with coordinates and dimensions
    """
    cpr_data = xr.open_dataset(ec_filepath, engine='h5netcdf', group='/ScienceData/Data',
                                decode_times=False,  phony_dims='access')
    cpr_data = cpr_data.rename_dims({'phony_dim_0':'distance','phony_dim_1': 'height'})
    cpr_meta = xr.open_dataset(ec_filepath, engine='h5netcdf', group='/ScienceData/Geo',
                               decode_times=False, phony_dims='access')
    cpr_meta = cpr_meta.rename_dims({'phony_dim_0':'distance','phony_dim_1': 'height'})
    print(f"{cpr_meta.dims=}")
    lonvec = cpr_meta['longitude']
    latvec = cpr_meta['latitude']
    distance = calc_distance(lonvec.data, latvec.data)
    the_times = find_times(ec_filepath)
    #
    # create a DataArray from the list to get correct dimension
    #
    the_times = xr.DataArray(the_times,dims=('distance',))
    binHeights = cpr_meta.binHeight[...].T
    heights = get_binheight(binHeights,0)
    coords = dict(height=("height",heights),
              distance = ("distance",distance))
    velocity = cpr_data['dopplerVelocity'].T
    radar = cpr_data['radarReflectivityFactor'].T
    dbZ = 10*np.log10(radar)
    attrs=dict(history = f"written by ec_to_xarray on {str(datetime.datetime.now())}",
               timezone="UTC",casenum=casenum)
    var_dict = dict(dbZ = dbZ , velocity=velocity,binHeights=binHeights,
                   longitude=lonvec, latitude=latvec, time = the_times)
    ds_earthcare = xr.Dataset(data_vars=var_dict,
        coords=coords,attrs=attrs)
    return ds_earthcare

62.5. Data cleaning#

there’s some data loss in the upper atmosphere for the first 1000 km. When those data values appear at 1000 km it causes an abrupt change in the bin heights. If we really cared about the first 1000 km, we could split the dataset to keep both regions. Instead let’s just remove that data by cropping the first 1000 km.

62.5.1. First find the new index for the start#

The line below finds the index closest to 1000 km, which is index 1924. We want to use this to select our new set of heights, instead of the height values at index 0. np.argmin returns the index of the distance vector that has the smallest absolute difference from 1000.

new_index = np.argmin(np.abs(radar_ds.distance.data - 1000))
new_index

np.int64(1924)

62.5.2. Replace the height coordinates with the value at index 1924#

This function will overwrite the height coordinate with the new value using assign_coords

def set_new_height(ds,target_index):
    """
    replace the height coordinate with a new height
    """
    height_array = ds['binHeights']
    bin_height = get_binheight(height_array,target_index)
    ds = ds.assign_coords({'height': bin_height})
    return ds


radar_ds = set_new_height(radar_ds,new_index)

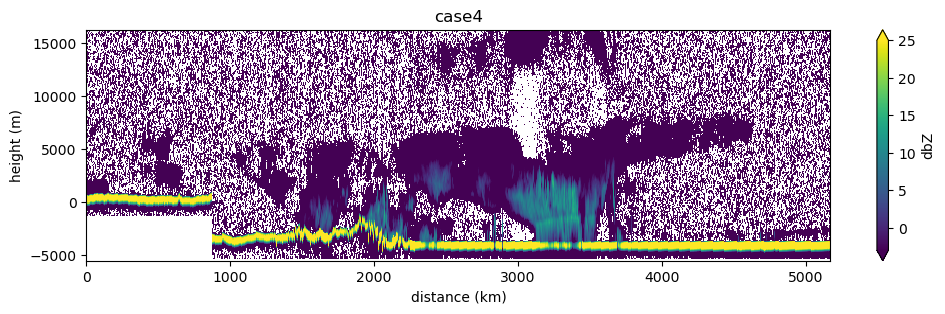

62.5.3. Plot with new height coordinate#

Now that we’re using the heights at 1000 km, the surface is at z=0 starting at 1000 km

fig, ax = plt.subplots(1,1,figsize=(12,3))
radar_ds['dbZ'].plot(ax = ax, x="distance",y="height",vmin=-3,vmax=25);
ax.set_xlabel("distance (km)")
ax.set_ylabel("height (m)")
ax.set_title(f"{casenum} with correct heights");

../../_images/bca437dc497ee16dcf35b4bb467800f10bf230e0522ce7d0fda0d00080fce94b.png

62.5.4. Crop first 1000 km#

Next remove the first 1000 km using the where function

radar_ds = radar_ds.where(radar_ds.coords['distance'] > 1000.,drop=True)

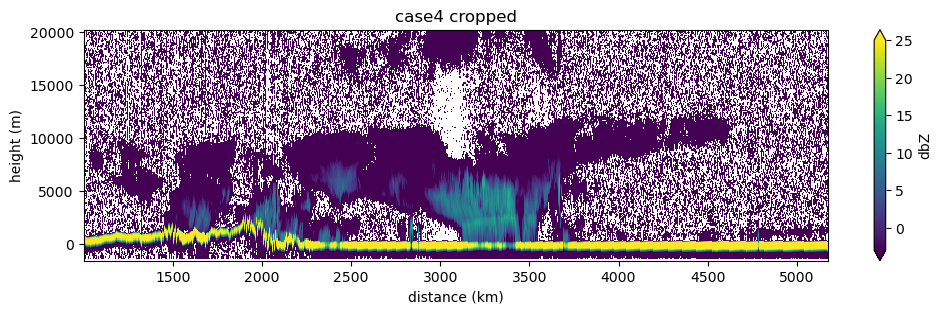

62.5.5. Cropped plot - original x axis#

fig, ax = plt.subplots(1,1,figsize=(12,3))
radar_ds['dbZ'].plot(ax = ax, x="distance",y="height",vmin=-3,vmax=25);
ax.set_xlabel("distance (km)")
ax.set_ylabel("height (m)")
ax.set_title(f"{casenum} cropped");

../../_images/b92a4d41a901443fcadd257fbb3fb0c189f718e507cccf7b17eb29b8d478510f.png

62.5.6. rewrite the distance coordinate#

Finally, make the new distance start from 0

new_distance = radar_ds.coords['distance'] - radar_ds.coords['distance'][0]
radar_ds = radar_ds.assign_coords({'distance': new_distance})

62.5.7. Cropped plot – new x axis#

fig, ax = plt.subplots(1,1,figsize=(12,3))
radar_ds['dbZ'].plot(ax = ax, x="distance",y="height",vmin=-3,vmax=25);
ax.set_xlabel("distance (km)")
ax.set_ylabel("height (m)")
ax.set_title(f"{casenum} new x coordinate");

../../_images/bfb8b92cd3ff4e6150cb85d7c0c47486981500259149739ebb678948373a8702.png

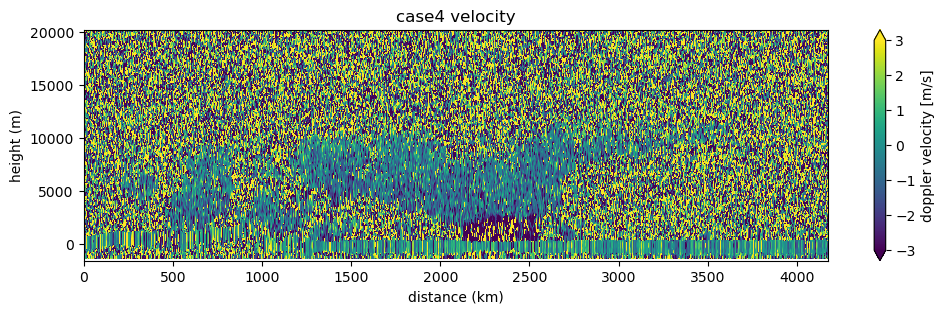

fig, ax = plt.subplots(1,1,figsize=(12,3))
radar_ds['velocity'].plot(ax = ax, x="distance",y="height",vmin=-3,vmax=3);
ax.set_xlabel("distance (km)")
ax.set_ylabel("height (m)")
ax.set_title(f"{casenum} velocity");

../../_images/62c2fa26277d602905bc0ee8a2732444e9c26dd47c2a0085c91c9ab2ec2cb695.png
