Notes on the Marshall-Palmer distribution and the Z-RR relation

52. Notes on the Marshall-Palmer distribution and the Z-RR relation#

Reading: Stull chapter 8, pages 245 - 248 on radar reflectivity rain rate and bright band.

A brief backgrounder in where Stull gets his equation 8.30 on page 247:

\[ Z = a_3 RR^{a_4} \]

This equation works because the collision/coalescence process for rain formation produces a remarkably regular distribution of droplet sizes for different rainrates, essentially “fingerprinting” the rain rate with its drop-size distribution, which produces a unique value of the radar reflectivity.

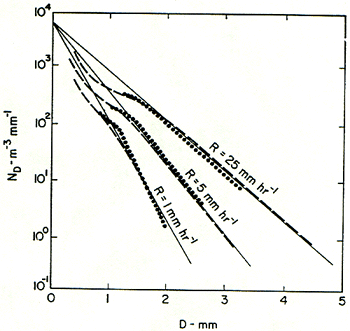

In 1947 Marshall and Palmer published their measurements of rain drop size as a function of rain rate:

../../_images/marshall_size.png

These results are well fit by this equation:

\[ n(D) = N_0 \exp(-\Lambda D) \]

where \(\Lambda=4.1 RR^{-0.21}\) with D in mm, \(N_D\) in \(m^{-3}\,mm^{-1}\) and RR in \(mm/hr\)

I’ve put this equation into the following function:

import numpy as np
from matplotlib import pyplot as plt

def marshall_dist(Dvec,RR):
  """
     Calcuate the Marshall Palmer drop size distribution

     Input: Dvec: vector of diameters in mm
            RR: rain rate in mm/hr
     output: n(Dvec), length of Dvec, in m^{-3} mm^{-1}
  """
  N0=8000  #m^{-3} mm^{-1}
  the_lambda= 4.1*RR**(-0.21)
  output=N0*np.exp(-the_lambda*Dvec)
  return output

def plot_marshall():
    Dvec = np.arange(0, 5, 0.1)  # mm
    rr_1 = marshall_dist(Dvec, 1.0)
    rr_5 = marshall_dist(Dvec, 5.0)
    rr_25 = marshall_dist(Dvec, 25.0)

    fig = plt.figure(1)
    fig.clf()
    ax1 = fig.add_subplot(111)
    ax1.semilogy(Dvec, rr_1, label="1 mm/hr")
    ax1.semilogy(Dvec, rr_5, label="5 mm/hr")
    ax1.semilogy(Dvec, rr_25, label="25 mm/hr")
    ax1.set_xlabel("Drop diameter (mm)")
    ax1.set_ylabel("$n(D)\ m^{-3}\,mm^{-1}$")
    ax1.set_title("Marshall Palmer distribution for three rain rates")
    ax1.set_ylim([0.1, 1.0e4])
    ax1.legend()

plot_marshall()

Here’s an introduction to a 2009 paper that presents the current leading contender for why the drop-size distribution behaves this way:
